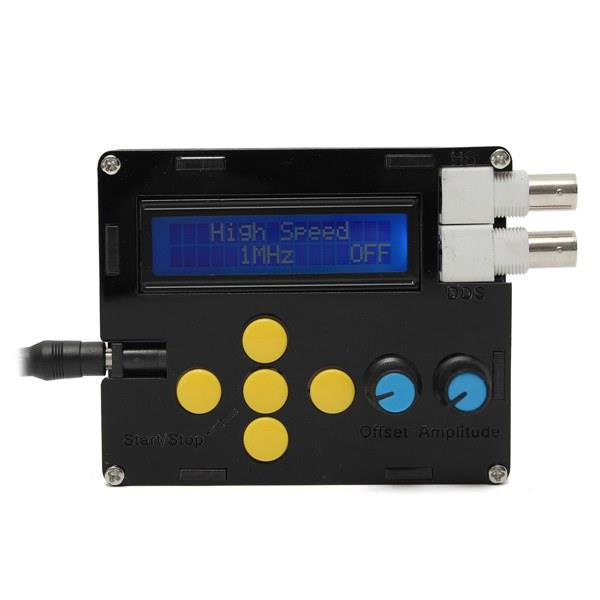

Dds Function Signal Generator Sine Square Triangle Sawtooth Wave Low Frequency

DDS Function Signal Generator Sine Square Triangle Sawtooth Wave Low Frequency Specification : Operating Voltage : DC9V DDS frequency range : 1Hz-65534Hz High-speed frequency(HS) output up to 8MHz DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers DDS signal : Sine wave, Square wave, Sawtooth, Reverse sawtooth, Triangle wave, the ECG wave and noise wave. 1602 LCD menu Intuitive keyboard Section into the value : 1, 10, 100, 1000, 10000Hz The power automatically restore the last used configuration Offset : 0.5Vpp-5Vpp Amplitude amount : 0.5Vpp-14Vpp Key Functions : UP output waveform select DOWN output waveform select LEFT output frequency- RIGHT output frequency STOP/RUN the output stop/start UP key waveforms order : ECG electrocardiogram wave(in the OFF state, the left and right keys to set the output frequency. Middle button start, all of the following waveform set) Rev Sawtooth reverse sawtooth Saw Tooth sawtooth Triangle triangle wave Square S Lees meer over de Dds Function Signal Generator Sine Square Triangle Sawtooth Wave Low Frequency van huismerk in de productgroep elektronica
